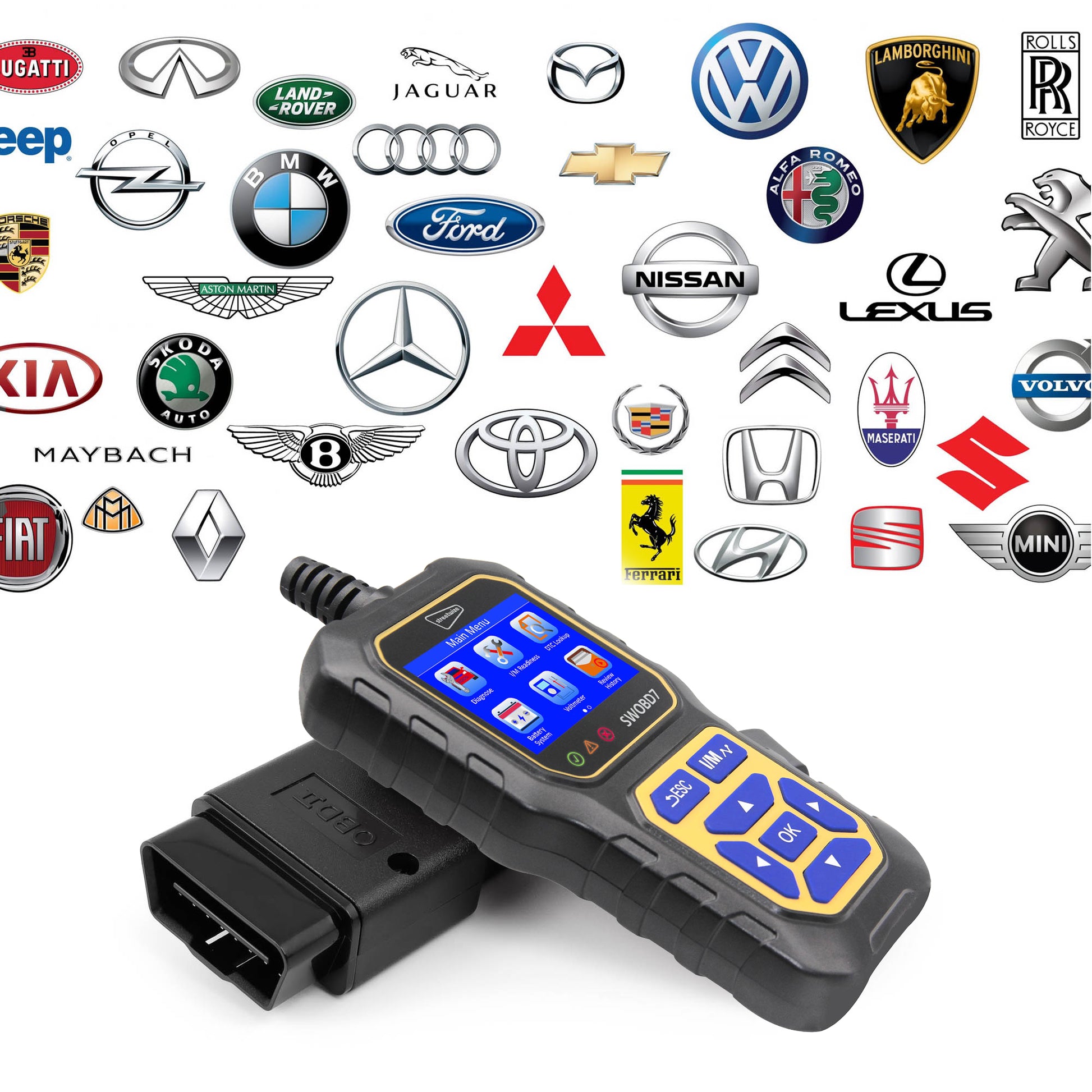

Auto Diagnostic OBD2 Scanner with Coloured Screen

OBD II Vehicle Diagnostic Reader with TFT Colour Display

This advanced OBD II vehicle diagnostic reader is perfect for roadside mechanics, garage technicians, and home users. It provides clear Diagnostic Trouble Code (DTC) readings, showing both generic and manufacturer-specific codes, as well as the malfunction indicator light (MIL) status. The tool also reviews emission readiness to help your vehicle comply with legislation. Live vehicle data, a “Code Lookup” feature, and multiple diagnostic tests such as O2 sensor, I/M readiness, and EVAP tests make this reader a comprehensive diagnostic solution. No batteries are required—simply connect to your vehicle’s OBD II port.

Key Features & Benefits

• Compatible with OBD II compliant petrol vehicles from 1996 onwards
• Determines MIL status and emission readiness of OBD monitors including O2 sensors and EVAP systems
• Reads both generic and manufacturer-specific DTCs
• Retrieves VIN on 2002 and newer vehicles
• Supplied with a comprehensive user manual explaining codes and operation
• Voltmeter function and battery level indicator
• Cranking System Test with voltage, time, and waveform graphs (vehicles 1996 or newer)
• Ripple test waveform graphing
• Charging System Test with live sensor data, DTC data, and freeze frame playback
• Can display 4 types of Data Stream Graphic
• No batteries required, powered directly via OBD II connection

Additional Information

• Not compatible with motorcycles, hybrid, or electric vehicles
• Ensure your vehicle has a 16-pin DLC and is OBD II compliant before purchase
• Supports the following protocols for compatibility check:
• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2 (5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 250 Kbaud)
