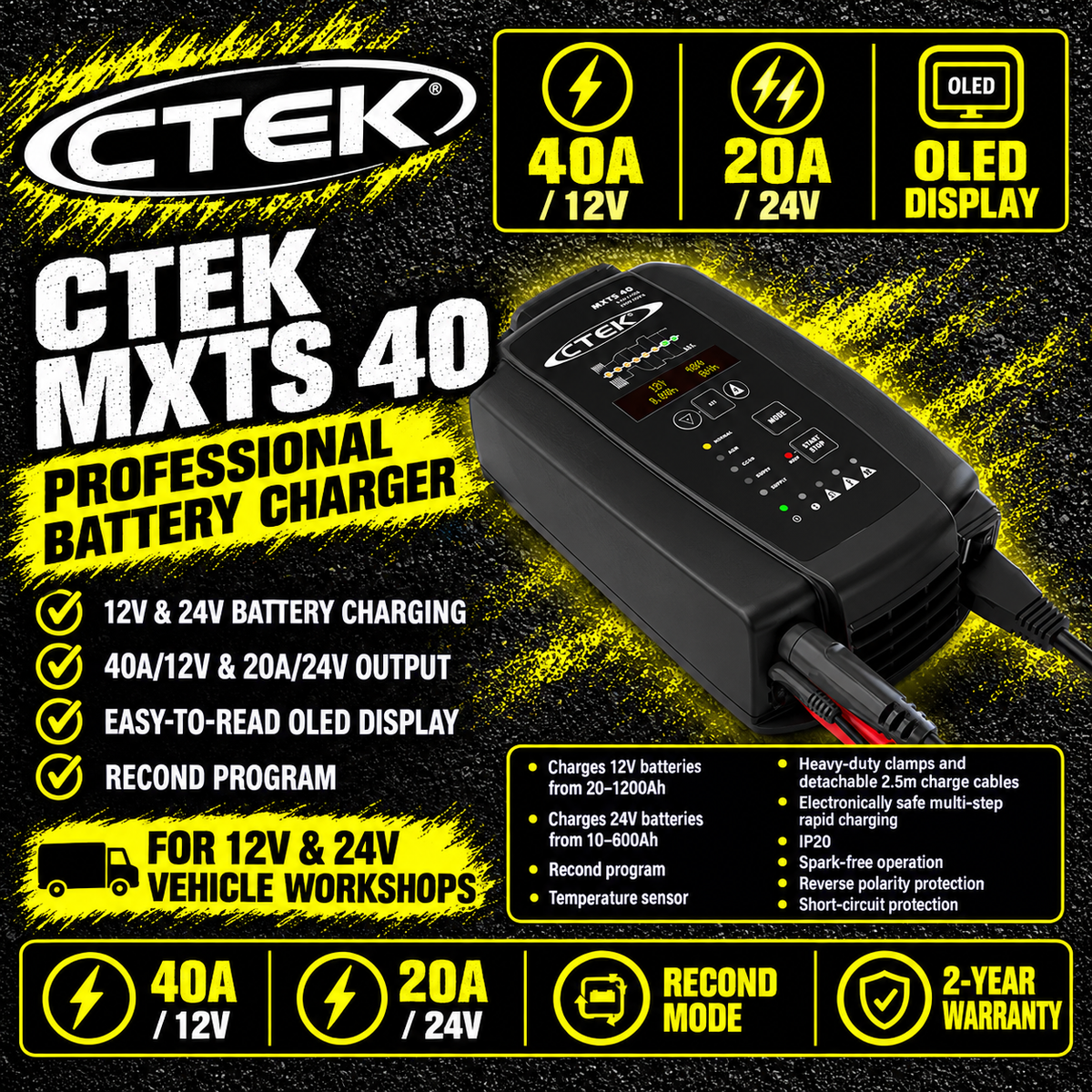

CTEK MXTS 40 – 40A 12V / 20A 24V Professional Battery Charger
CTEK MXTS 40 – 40A 12V / 20A 24V Professional Battery Charger
SKU:40-099
Couldn't load pickup availability
The CTEK MXTS 40 is a professional battery charging, maintenance and power support station designed for 12V and 24V vehicle workshops and showrooms. It combines rapid multi-step charging with electronic protection features and selectable constant-voltage settings for applications where maintaining a stable voltage is important.
The charger provides 40A output at 12V and 20A at 24V, supporting 12V batteries from 20–1200Ah and 24V batteries from 10–600Ah.
For workshop and diagnostic applications, the MXTS 40 provides selectable constant-voltage settings designed to help prevent voltage fluctuations during ECU programming. An easy-to-read OLED display provides key charging information, including current, voltage and amp-hours charged, while an eight-step charging progress display makes it easy to monitor the charging process.
A Recond programme is included for reconditioning deeply discharged batteries, while the integrated temperature sensor helps compensate for cold conditions for optimised charging.
Built for demanding workshop environments, the MXTS 40 features a heavy-duty polycarbonate housing and electronic safety systems including reverse-polarity protection, short-circuit protection and spark-free operation.
The charger can also be used with the optional CTEK Wall Hanger PRO and Trolley PRO for more secure storage and easier portability.
Key Features
- Professional 12V and 24V battery charging and support station
- 40A output at 12V
- 20A output at 24V
- Charges 12V batteries from 20–1200Ah
- Charges 24V batteries from 10–600Ah
- Selectable constant-voltage settings for workshop support applications
- Recond programme for battery reconditioning
- Temperature sensor for compensation in cold conditions
- Easy-to-read OLED display
- Eight-step charge progress display
- Displays key charging parameters including current, voltage and amp-hours charged
- Heavy-duty polycarbonate housing
- Supplied with heavy-duty clamps
- Detachable 2.5m charging cables
- Electronic multi-step rapid charging
- Spark-free operation
- Reverse-polarity protected
- Short-circuit protected
- IP20 rated
- Compatible with optional Wall Hanger PRO and Trolley PRO accessories
- 2-year warranty
Specifications
| Specification | Details |
|---|---|
| Brand | CTEK |
| Model | MXTS 40 |
| Product Type | Professional battery charger / support station |
| Battery Voltage | 12V / 24V |
| Maximum Output | 40A at 12V / 20A at 24V |
| 12V Battery Capacity | 20–1200Ah |
| 24V Battery Capacity | 10–600Ah |
| Charging Type | Multi-step electronic charging |
| Display | OLED |
| Charge Progress | 8-step display |
| Recond Programme | Yes |
| Temperature Sensor | Yes |
| Constant Voltage Settings | Selectable |
| Charge Cables | Detachable, 2.5m |
| Housing | Heavy-duty polycarbonate |
| Protection Rating | IP20 |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Spark-Free Operation | Yes |
| Warranty | 2 years |
| SKU / Part Number | 40-099 |
| Commodity Code | 8504406090 |
Compatibility / Applications
Designed for 12V and 24V vehicle batteries and professional workshop applications.
Suitable battery capacity ranges:
- 12V: 20–1200Ah
- 24V: 10–600Ah
Typical applications include:
- Vehicle workshops
- Automotive dealerships and showrooms
- Vehicle servicing
- Battery maintenance
- ECU programming support
- Professional battery charging
- Commercial and workshop vehicles
The MXTS 40 can be used with the optional CTEK Wall Hanger PRO and Trolley PRO accessories.
